Gibraltar
Die Spring - Gibraltar DCIM25-203
MFR# DCIM25-203
$12.43List $15.60
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

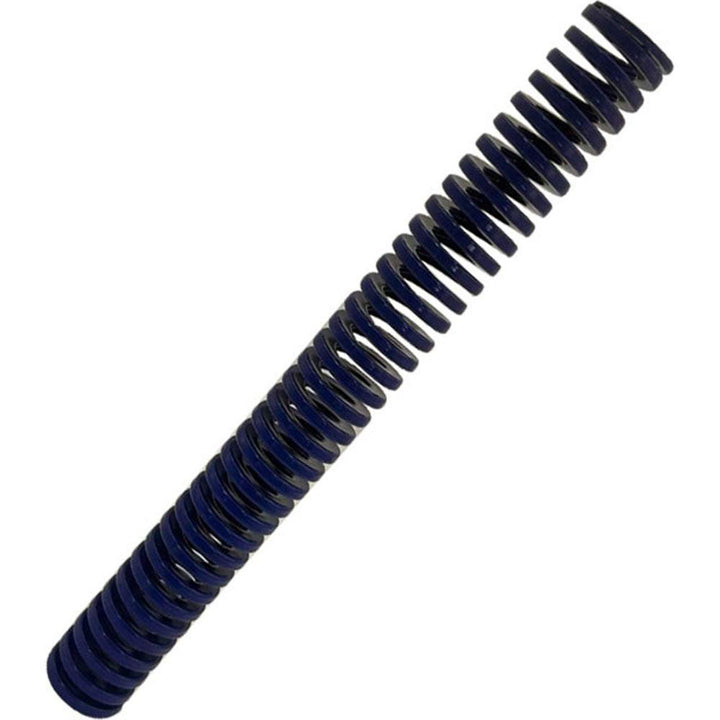

The Gibraltar DCIM25-203 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load3.43
Duty ratingMedium-Duty
Free length in8
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection3.4300
Maximum deflection load lb345.00
Maximum deflection load n1535.25
Rod diameter in1/2
Spring rate101.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load3.4370
Wire shapeTrapezoidal
