Gibraltar

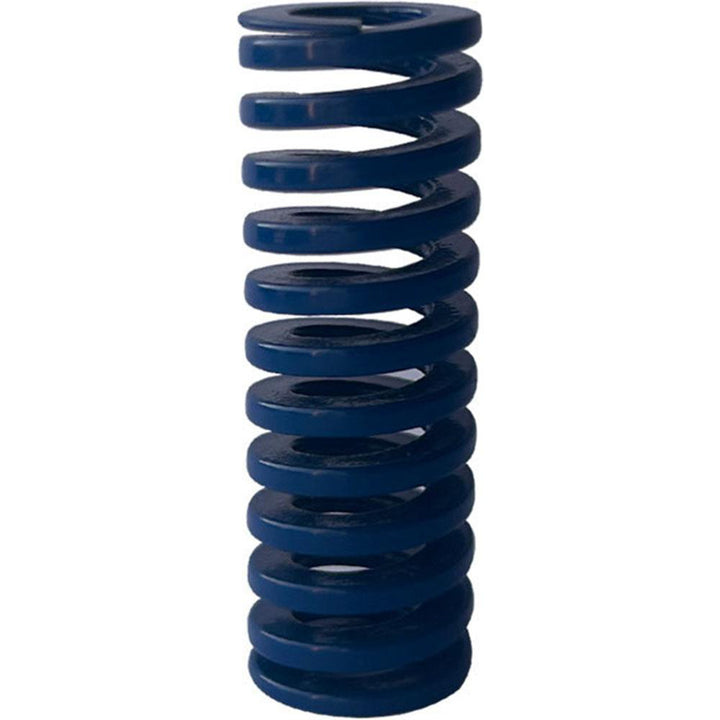

Die Spring - Gibraltar DCIM25-44
MFR# DCIM25-44
$4.17List $5.23
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM25-44 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.72
Duty ratingMedium-Duty
Free length in1-3/4
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.7200
Maximum deflection load lb368.00
Maximum deflection load n1637.60
Rod diameter in1/2
Spring rate509.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.7421
Wire shapeTrapezoidal
