Gibraltar

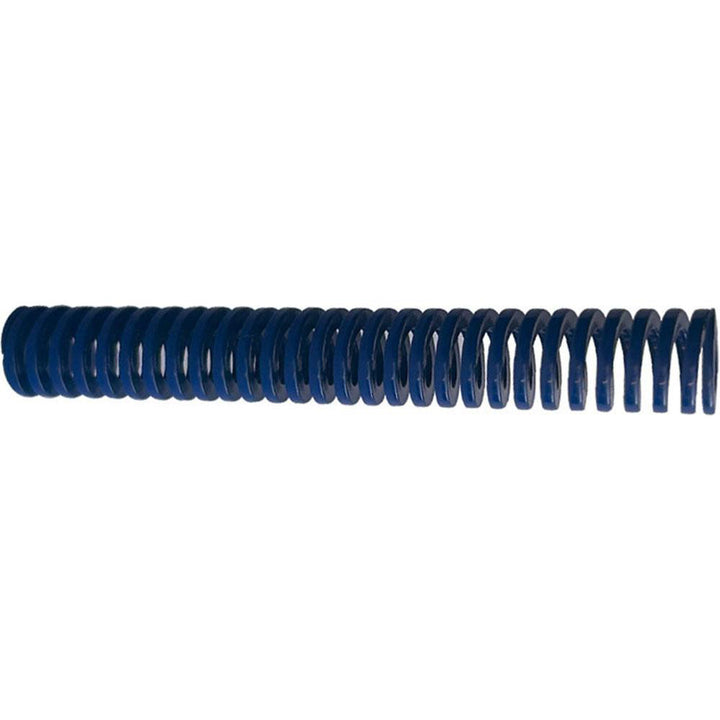

Die Spring - Gibraltar DCIM25-89
MFR# DCIM25-89
$5.80List $7.28
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM25-89 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load1.46
Duty ratingMedium-Duty
Free length in3-1/2
Hole diameter in1
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.4600
Maximum deflection load lb341.00
Maximum deflection load n1517.45
Rod diameter in1/2
Spring rate233.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.4567
Wire shapeTrapezoidal
