Gibraltar

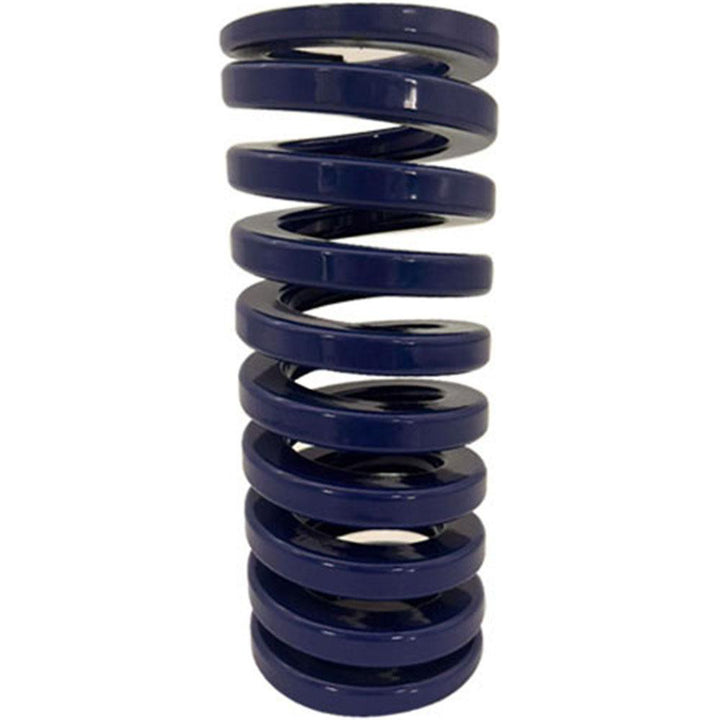

Die Spring - Gibraltar DCIM32-140
MFR# DCIM32-140
$11.54List $14.48
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM32-140 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load2.43
Duty ratingMedium-Duty
Free length in5-1/2
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.4300
Maximum deflection load lb525.00
Maximum deflection load n2336.25
Rod diameter in5/8
Spring rate216.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.4606
Wire shapeTrapezoidal
