Gibraltar

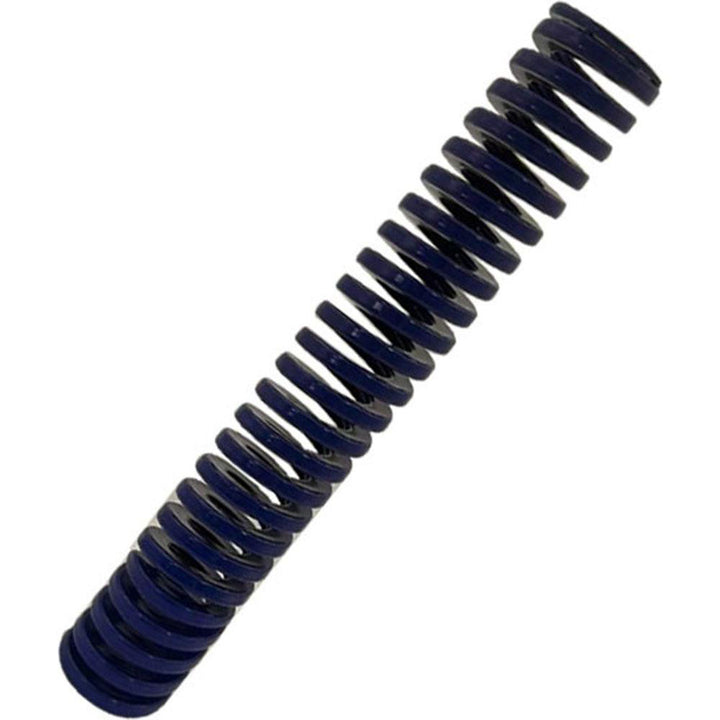

Die Spring - Gibraltar DCIM32-152
MFR# DCIM32-152
$12.60List $15.81
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM32-152 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load2.6
Duty ratingMedium-Duty
Free length in6
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection2.6000
Maximum deflection load lb501.00
Maximum deflection load n2229.45
Rod diameter in5/8
Spring rate193.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load2.6142
Wire shapeTrapezoidal
