Gibraltar

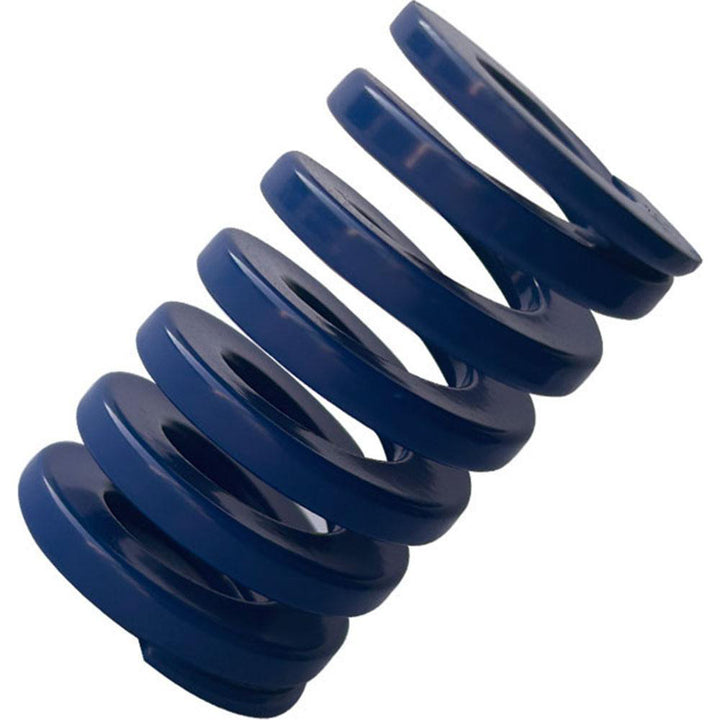

Die Spring - Gibraltar DCIM32-51
MFR# DCIM32-51
$6.09List $7.64
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM32-51 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load0.91
Duty ratingMedium-Duty
Free length in2
Hole diameter in1-1/4
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection0.9100
Maximum deflection load lb606.00
Maximum deflection load n2696.70
Rod diameter in5/8
Spring rate664.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load0.9055
Wire shapeTrapezoidal
