Gibraltar

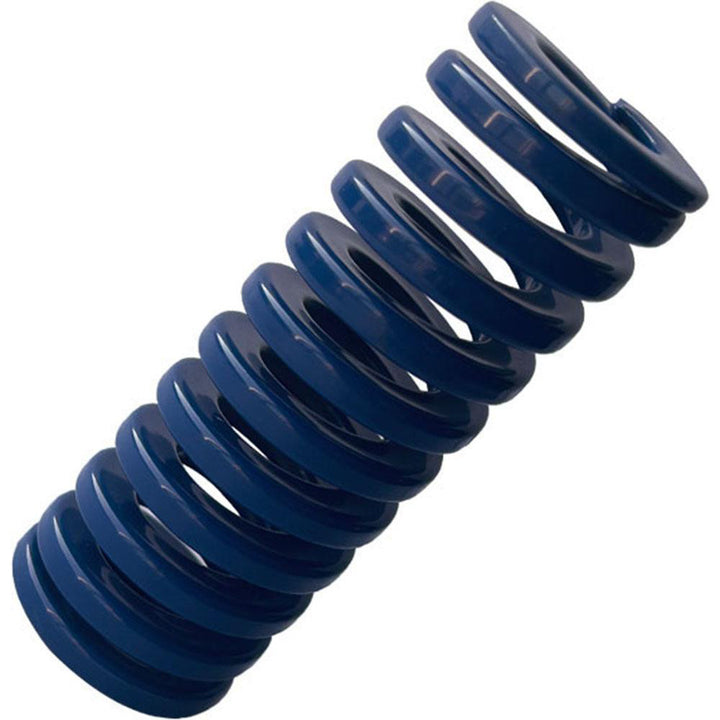

Die Spring - Gibraltar DCIM50-102
MFR# DCIM50-102
$21.63List $27.15
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar DCIM50-102 is a chromium alloy steel die spring. Meets NAAMS (North American Automotive Metric Standard); ISO 10243 International Standard.
Specifications
ColorBlue
Compressed length at maximum load1.71
Duty ratingMedium-Duty
Free length in4
Hole diameter in2
Iso 90012015 Registered
MaterialChromium Alloy Steel
Maximum deflection1.7100
Maximum deflection load lb1184.00
Maximum deflection load n5268.80
Rod diameter in1
Spring rate693.0000
StandardsNAAMS (North American Automotive Metric Standard); ISO 10243 International Standard
Travel to solid load1.6929
Wire shapeTrapezoidal
