Gibraltar

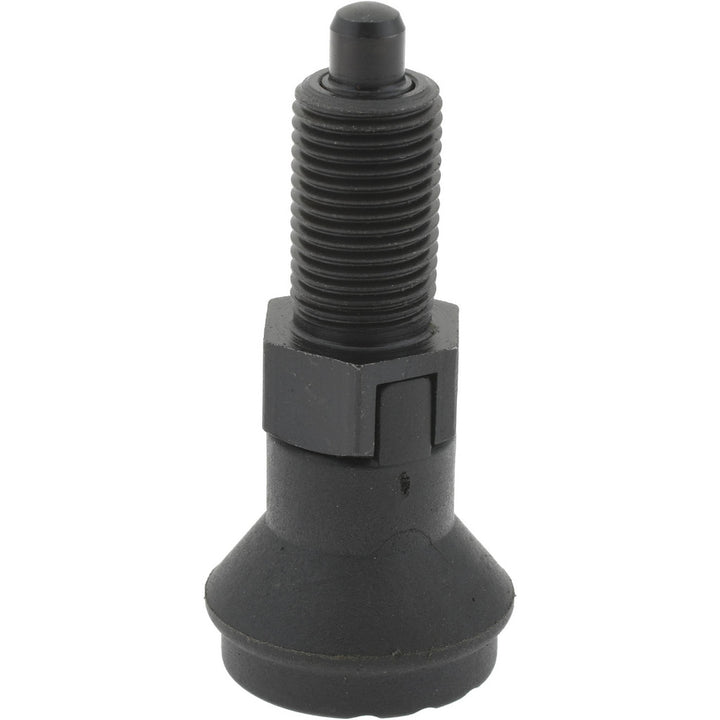

M10x1 Spring Plunger - Gibraltar IPG-100-G
MFR# IPG-100-G
$28.54List $35.83
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar IPG-100-G is a M10x1 steel spring plunger.
Specifications
Body length17mm
Body length (mm)17.00
Distance across nut flats13mm
Distance across nut flats (mm)13.00
Final end force12N
Final end force n12.00
FinishBlack
Indexing plunger style codeC
Initial end force5N
Initial end force n5.00
Knob diameter21mm
Knob diameter (mm)21.00
Lock nutNo
MaterialSteel
Nut height7mm
Nut height (mm)7.00
Overall length47mm
Overall length (mm)47.00
Plunger diameter5mm
Plunger projection5mm
Plunger projection (mm)5.00
Plunger typeLockout
Thread length15mm
Thread sizeM10x1
