Gibraltar

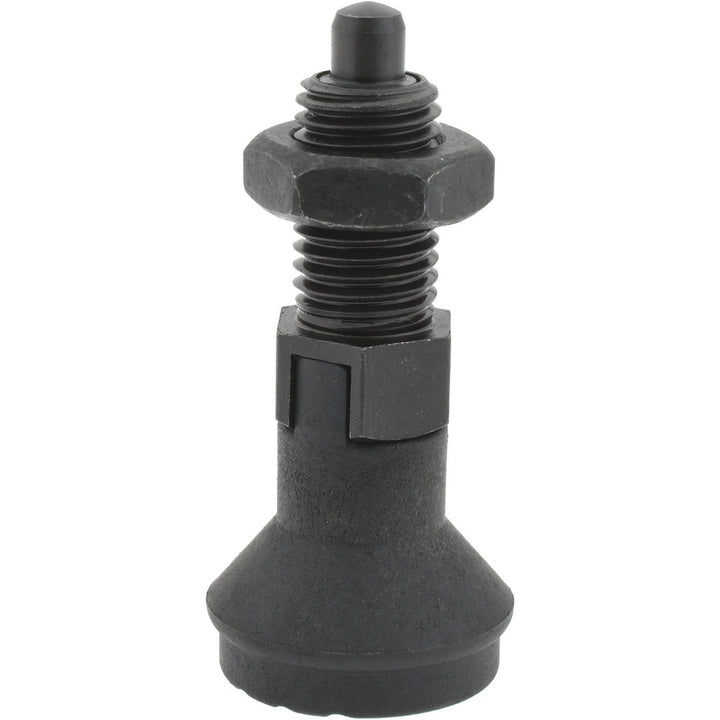

M12x1.5 Spring Plunger - Gibraltar IPG-103-G
MFR# IPG-103-G
$31.88List $40.02
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar IPG-103-G is a M12x1.5 steel spring plunger.
Specifications
Body length20mm
Body length (mm)20.00
Distance across nut flats14mm
Distance across nut flats (mm)14.00
Final end force14N
Final end force n14.00
FinishBlack
Indexing plunger style codeD
Initial end force6N
Initial end force n6.00
Knob diameter25mm
Knob diameter (mm)25.00
Lock nutYes
MaterialSteel
Nut height8mm
Nut height (mm)8.00
Overall length56mm
Overall length (mm)56.00
Plunger diameter6mm
Plunger projection6mm
Plunger projection (mm)6.00
Plunger typeLockout
Thread length17mm
Thread sizeM12x1.5
