Gibraltar

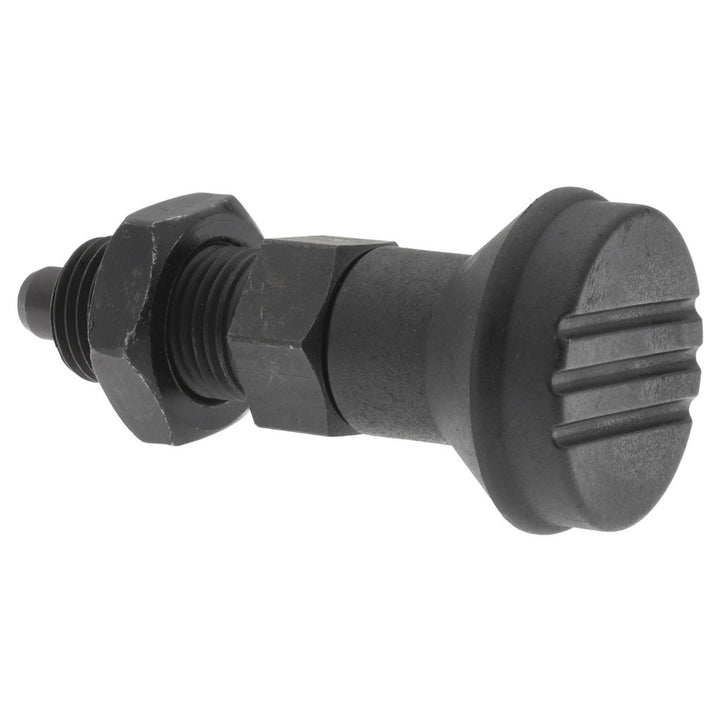

M16x1.5 Spring Plunger - Gibraltar IPG-117-G
MFR# IPG-117-G
$32.44List $40.72
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar IPG-117-G is a M16x1.5 steel spring plunger.
Specifications
Body length26mm
Body length (mm)26.00
Distance across nut flats19mm
Distance across nut flats (mm)19.00
Final end force35N
Final end force n35.00
Indexing plunger style codeB
Initial end force15N
Initial end force n15.00
Knob diameter33mm
Knob diameter (mm)33.00
Lock nutYes
MaterialSteel
Nut height10mm
Nut height (mm)10.00
Overall length74mm
Overall length (mm)74.00
Plunger diameter8mm
Plunger projection8mm
Plunger projection (mm)8.00
Plunger typeNon-Locking
Thread length23mm
Thread sizeM16x1.5
