Gibraltar
Spring Plunger - Gibraltar KNL-0-PT-G
MFR# KNL-0-PT-G
$16.64List $20.90
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

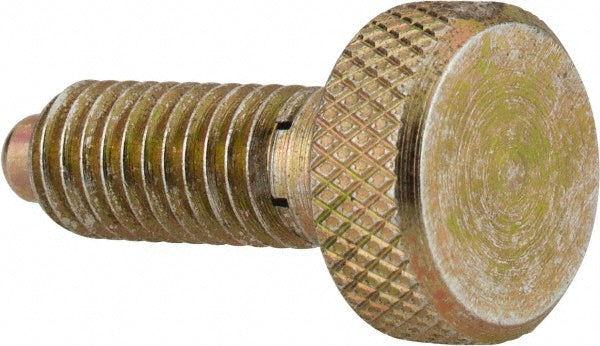

The Gibraltar KNL-0-PT-G is a spring plunger.
Specifications
Body length0.4600
Final end force lb3.00
Head diameter0.3800
Head height0.1900
Head shoulder height0.2500
Initial end force lb0.50
Knob styleKnurled
Length under head shoulder0.4000
Locking elementYes
Maximum plunger diameter0.1040
Plunger diameter tolerance+0.001/-0.000
Plunger length0.6500
Plunger projection0.0940
Plunger typeNon-Locking
Thread length0.4000
