Gibraltar

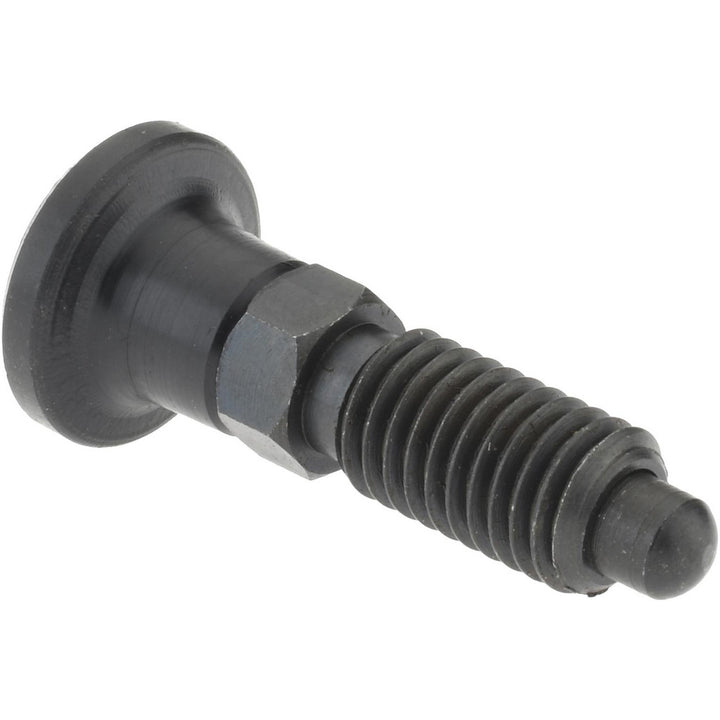

M10x1.5 Spring Plunger - Gibraltar MDKN38-G
MFR# MDKN38-G
$17.16List $21.54
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar MDKN38-G is a M10x1.5 steel spring plunger.
Specifications
Body length0.9800
Final end force9N; 2.02lb
Final end force lb2.02
Final end force n9.00
FinishBlack
Head diameter0.748in; 19mm
Head shoulder height0.7100
Hex size0.3900
Initial end force1N; 0.22lb
Initial end force lb0.22
Initial end force n1.00
Knob styleDelrin
Length under head shoulder0.7900
Locking elementNo
MaterialSteel
Maximum plunger diameter0.2360
Plunger length1.5000
Plunger projection0.1960
Plunger typeNon-Locking
Thread length20mm
Thread sizeM10x1.5
