Gibraltar

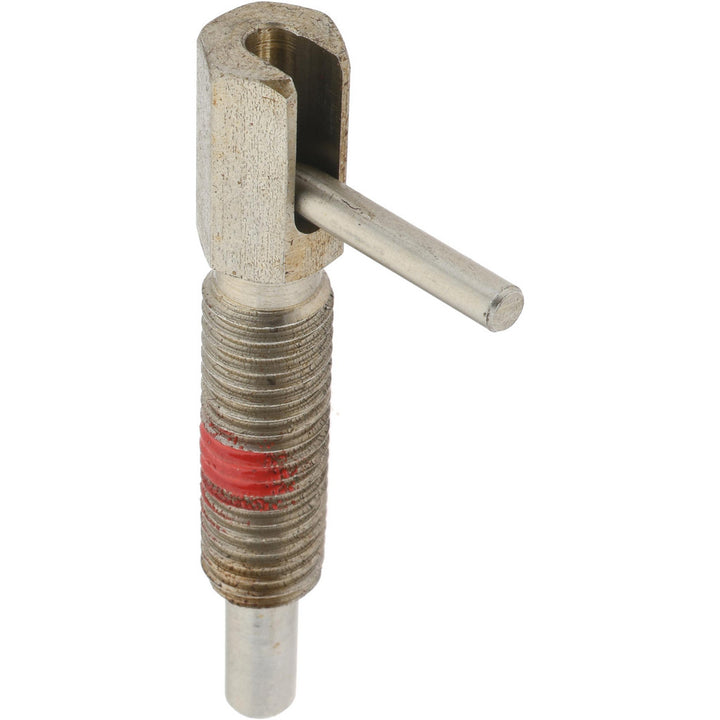

M10x1.5 Spring Plunger - Gibraltar MLLS-3-PT-G
MFR# MLLS-3-PT-G
$21.06List $26.44
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar MLLS-3-PT-G is a M10x1.5 spring plunger.
Specifications
Body length51mm
Body length (mm)51.00
Final end force16.7N
Final end force n16.70
Handle diameter3.5in
Handle diameter (mm)3.50
Handle length19mm
Handle length (mm)19.00
Handle materialStainless Steel
Head height0.7in; 17.78mm
Hex size10mm
Hex size (mm)10.00
Initial end force3.3N
Initial end force n3.30
Length between head and thread3.30
Length between head thread3.3mm
Length under head33mm
Length under head (mm)33.00
Locking elementYes
Plunger diameter6mm
Plunger length2.0000
Plunger projection14mm
Plunger projection (mm)14.00
Plunger typeLocking
Thread length1.17in; 29.72mm
Thread sizeM10x1.5
