Gibraltar

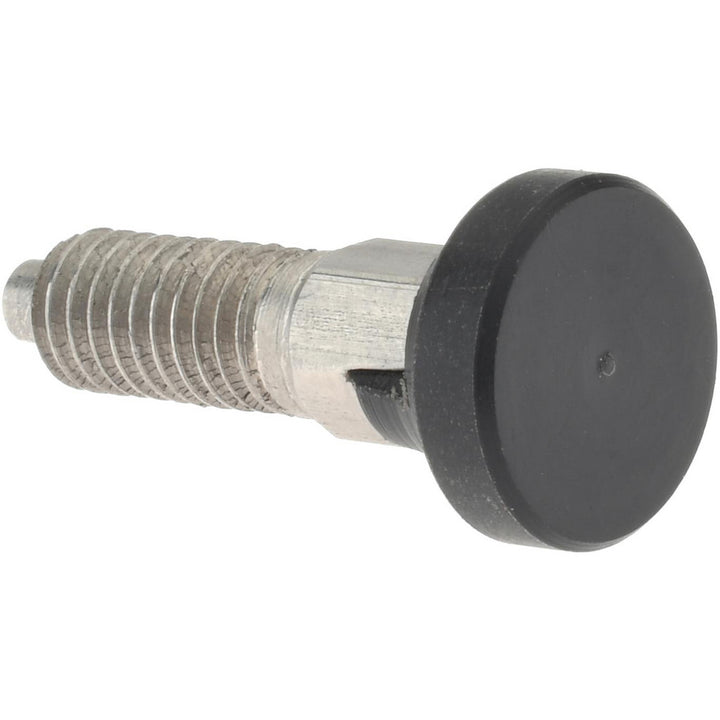

M6x1.0 Spring Plunger - Gibraltar MSDKL25-G
MFR# MSDKL25-G
$20.76List $26.06
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Gibraltar MSDKL25-G is a M6x1.0 stainless steel spring plunger.
Specifications
Body length0.6300
Final end force1.5N; 0.34lb
Final end force lb0.34
Final end force n1.50
FinishBlack
Head diameter0.48in; 12.19mm
Head shoulder height0.4800
Hex size0.2360
Initial end force0.5N; 0.11lb
Initial end force lb0.11
Initial end force n0.50
Knob styleDelrin
Length under head shoulder0.5000
Locking elementNo
MaterialStainless Steel
Maximum plunger diameter0.1180
Plunger length0.9800
Plunger projection0.1180
Plunger typeLocking
Thread length13mm
Thread sizeM6x1.0
