Gibraltar
M10x1.5 Spring Plunger - Gibraltar MSDKL38-G
MFR# MSDKL38-G
$24.33List $30.54
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

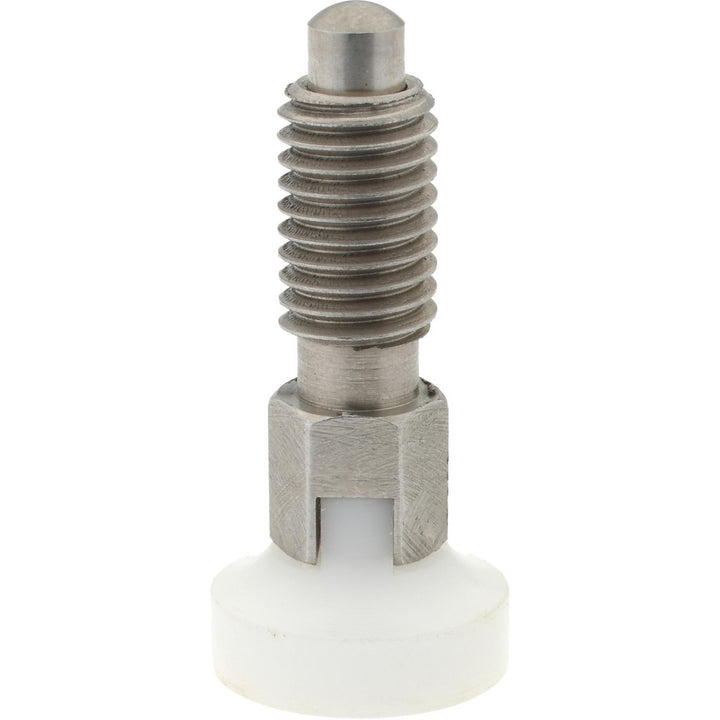

The Gibraltar MSDKL38-G is a M10x1.5 stainless steel spring plunger.
Specifications
Body length0.9800
Final end force9N; 2.02lb
Final end force lb2.02
Final end force n9.00
FinishBlack
Head diameter0.75in; 19.05mm
Head shoulder height0.7100
Hex size0.3900
Initial end force1N; 0.22lb
Initial end force lb0.22
Initial end force n1.00
Knob styleDelrin
Length under head shoulder0.7900
Locking elementNo
MaterialStainless Steel
Maximum plunger diameter0.2360
Plunger length1.5000
Plunger projection0.1960
Plunger typeLocking
Thread length20mm
Thread sizeM10x1.5
