Gibraltar
M12x1.75 Spring Plunger - Gibraltar MSDKN50-PT-G
MFR# MSDKN50-PT-G
$27.32List $34.30
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

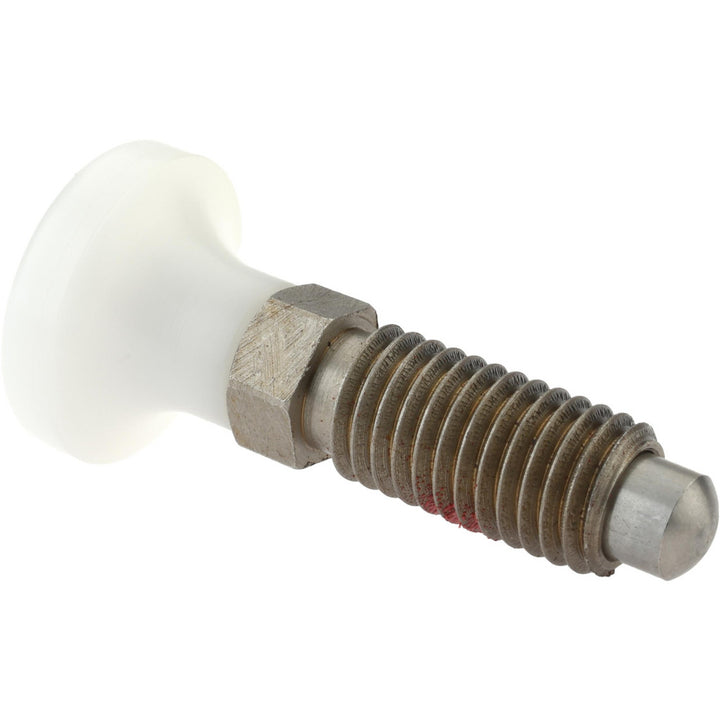

The Gibraltar MSDKN50-PT-G is a M12x1.75 stainless steel spring plunger.
Specifications
Body length1.2000
Final end force8N; 1.8lb
Final end force lb1.80
Final end force n8.00
Head diameter0.98in; 25mm
Head shoulder height0.8700
Hex size0.4720
Initial end force2.5N; 0.56lb
Initial end force lb0.56
Initial end force n2.50
Knob styleDelrin
Length under head shoulder0.9800
Locking elementYes
MaterialStainless Steel
Maximum plunger diameter0.3140
Plunger length1.8500
Plunger projection0.2360
Plunger typeNon-Locking
Thread length25mm
Thread sizeM12x1.75
