Gibraltar
Spring Plunger - Gibraltar MSKNL-3-G
MFR# MSKNL-3-G
$13.94List $17.50
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

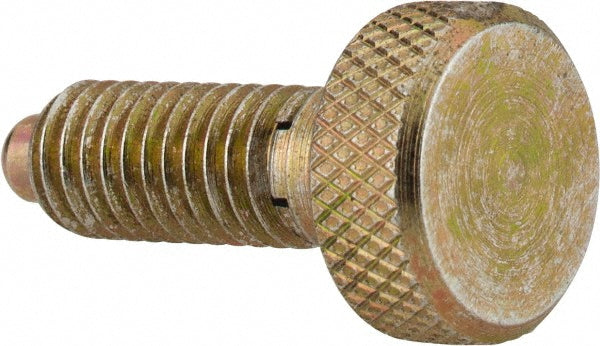

The Gibraltar MSKNL-3-G is a spring plunger.
Specifications
Body length0.9500
Final end force lb8.00
Final end force n35.60
Head diameter0.7480
Head height0.3150
Head shoulder height0.5120
Initial end force lb1.00
Initial end force n4.45
Knob styleKnurled
Length under head shoulder0.7480
Locking elementNo
Maximum plunger diameter0.1900
Plunger diameter tolerance+0.000/-0.001
Plunger length1.2600
Plunger projection0.2360
Plunger typeNon-Locking
Thread length0.7480
