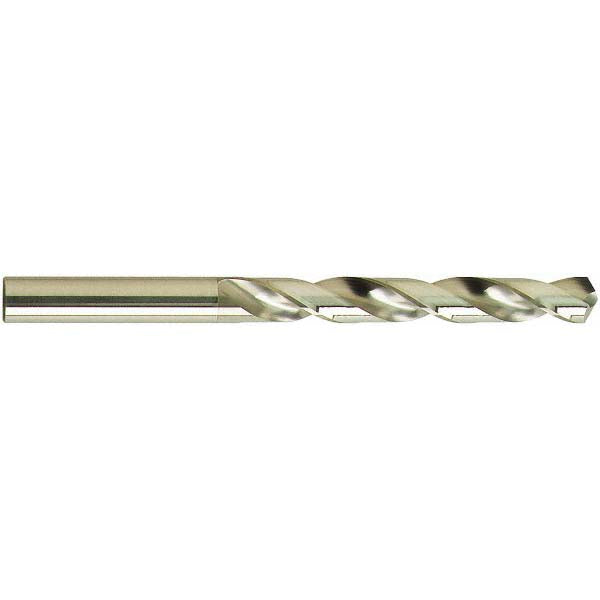

#76 High Speed Steel Drill Bit, 118° point - Guhring 9002050005100
MFR# 9002050005100Series 205
$3.15List $4.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9002050005100 is a #76 High Speed Steel drill bit, 118° point. Suited for cast iron, steel. Series 205.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.010 mm
Drill bit finish coatingBright
Drill bit materialHigh Speed Steel
Drill bit size0.0201
Drill bit size range0.0000 - 0.0500
Drill bit size wire#76
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)6.00
Flute typeSpiral
Material gradeM2
Number of flutes2
Overall length (mm)22.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)0.51
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
