Guhring
0.0945" High Speed Steel Drill Bit, Oxide, 118° point - Guhring 9002050024000
MFR# 9002050024000
$2.25List $2.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description

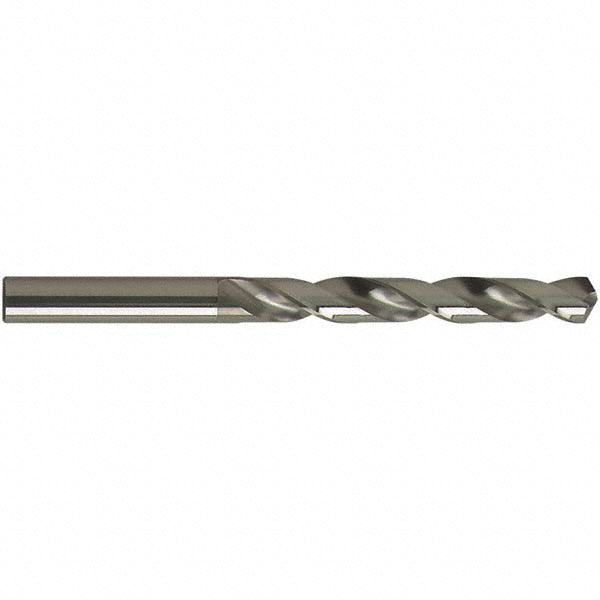

The Guhring 9002050024000 is a 0.0945" High Speed Steel drill bit with a Oxide finish, 118° point.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0945
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.1811
Flute typeSpiral
Material gradeM2
Maximum drilling depth1.1811
Number of flutes2
Overall length2.2441
Point typeStandard
Shank diameter0.0945
Shank length1.0630
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
