Guhring

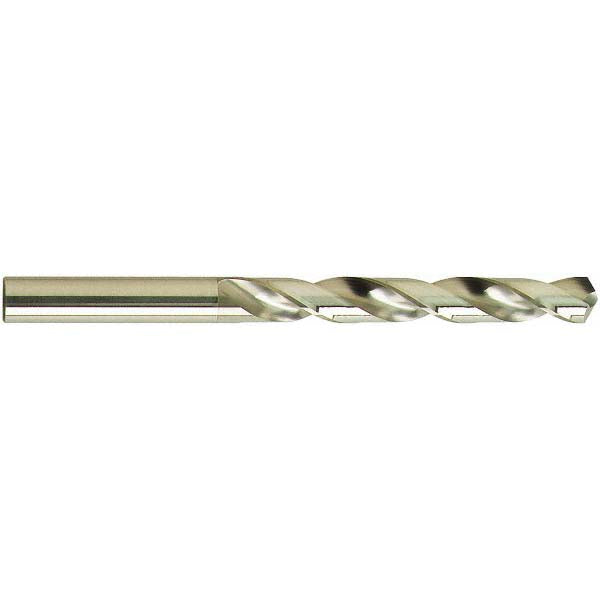

0.1268" HSS Drill Bit, Oxide, 118° point - Guhring 9002050032200
MFR# 9002050032200Series 205
$4.18List $5.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Guhring 9002050032200 is a 0.1268" HSS drill bit with a Oxide finish, 118° point. Suited for steel, cast iron. Series 205.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size0.1268
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length1.4173
Flute typeRegular Spiral
Material gradeM2
Maximum drilling depth1.2270
Number of flutes2
Overall length2.5591
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Shank diameter0.1268
Shank length (mm)29
Shank typeStraight
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
