Guhring

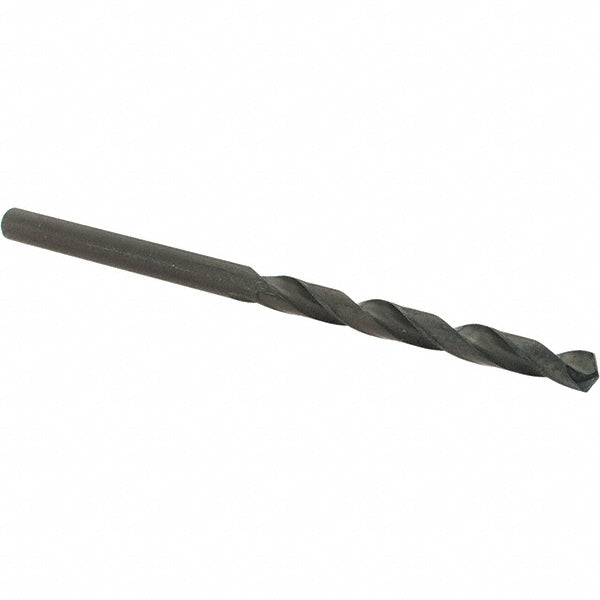

#30 High Speed Steel Drill Bit, Oxide, 118° point - Guhring 9002050032600
MFR# 9002050032600Series 205
$2.15List $2.75
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9002050032600 is a #30 High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. Series 205.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.018 to 0.000 mm
Drill bit finish coatingOxide
Drill bit materialHigh Speed Steel
Drill bit size0.1285
Drill bit size range0.1000 - 0.1500
Drill bit size wire#30
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)36.00
Flute typeSpiral
Maximum drilling depth1.2250
Number of flutes2
Overall length (mm)65.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.1283
Shank length (mm)29.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
