Guhring

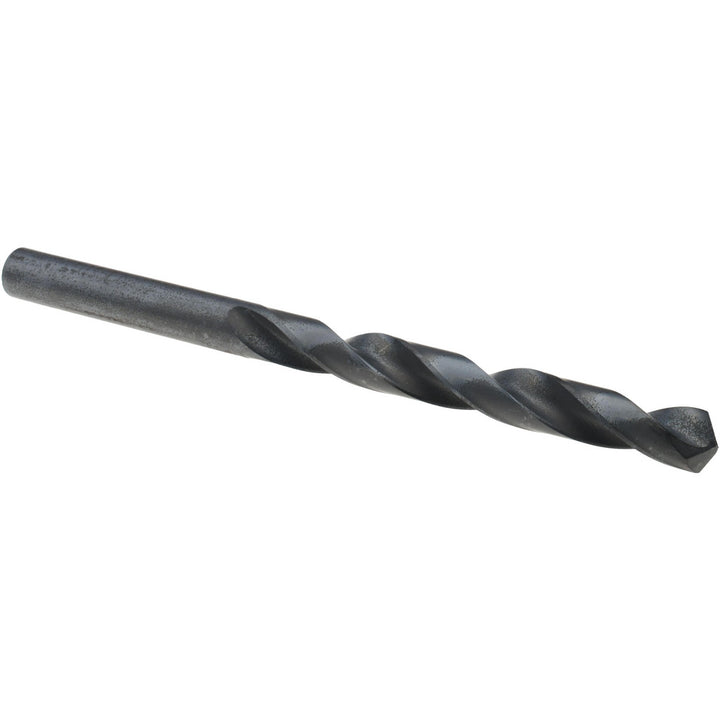

Letter R High Speed Steel Drill Bit, Oxide, 118° point - Guhring 9002050086100
MFR# 9002050086100
$8.95List $11.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingOxide
Description
The Guhring 9002050086100 is a Letter R High Speed Steel drill bit with a Oxide finish, 118° point.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit materialHigh Speed Steel
Drill bit size0.3390
Drill bit size letterR
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)81.00
Flute typeSpiral
Material gradeM2
Overall length (mm)125.00
Point typeStandard
Shank diameter0.3390
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
