Guhring
1/2" High Speed Steel Drill Bit, Oxide, 118° point - Guhring 9002050127000
MFR# 9002050127000Series 205
$15.19List $19.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
Description

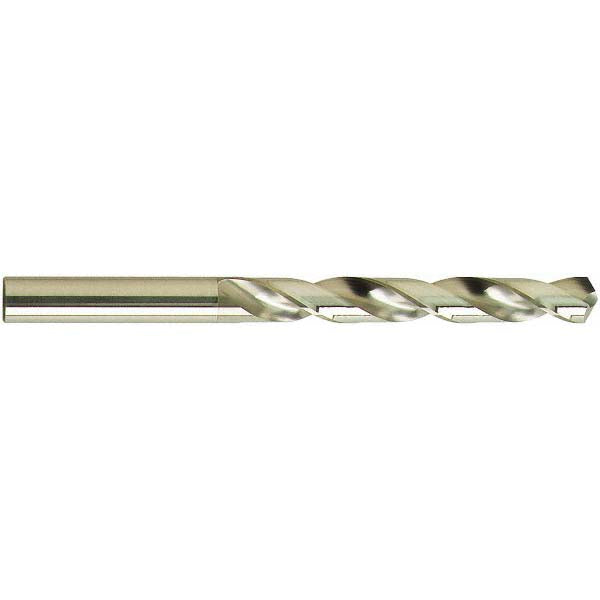

The Guhring 9002050127000 is a 1/2" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. Series 205.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit finish coatingOxide
Drill bit materialHigh Speed Steel
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)101.00
Flute typeSpiral
Material gradeM2
Maximum drilling depth3.2260
Number of flutes2
Overall length (mm)151.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in1/2
Shank length (mm)50.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
