Guhring

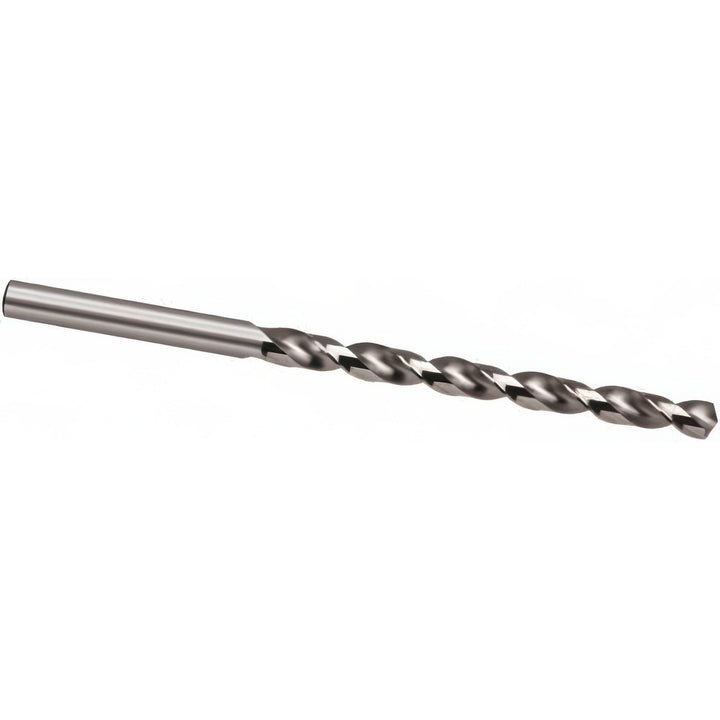

0.2520" High Speed Steel Drill Bit, 130° point - Guhring 9002190064000
MFR# 9002190064000Series 219
$28.97List $37.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Guhring 9002190064000 is a 0.2520" High Speed Steel drill bit, 130° point. Series 219.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.2520
Drill point angle degrees130
Flute length (mm)97.00
Flute length x diameter ratio10xD
Flute typeSpiral
Material gradeM-2
Maximum drilling depth3.4410
Overall length (mm)148.00
Point typeCone Relief
Shank diameter (mm)6.40
Shank length (mm)51.00
Shank typeCylindrical
Spiral typeFast
StandardsDIN 340
Threaded shankNo
Tool materialHigh Speed Steel
Web thinningWeb-Thinned
