Guhring
#55 HSS Stub Drill Bit, 118° point - Guhring 9002230013200
MFR# 9002230013200Series 223
$2.10List $2.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

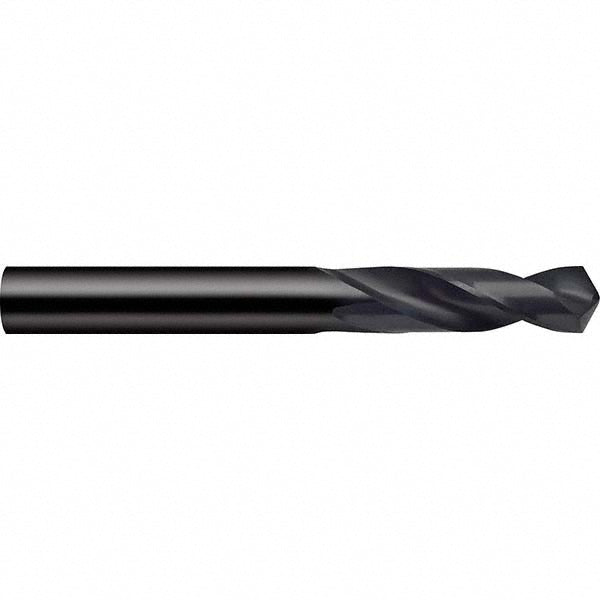

The Guhring 9002230013200 is a #55 HSS Stub drill bit, 118° point. Series 223.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.0520
Drill bit size range0.0000 to 0.1000
Drill bit size wire#55
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)7.00
Flute typeRegular Spiral
Material gradeM2
Number of flutes2
Overall length1.1024
Point typeStandard
Shank diameter0.0520
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialHSS
Web configurationTapered
