Guhring
#44 HSS Stub Drill Bit, 118° point - Guhring 9002230021800
MFR# 9002230021800Series 223
$2.12List $2.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

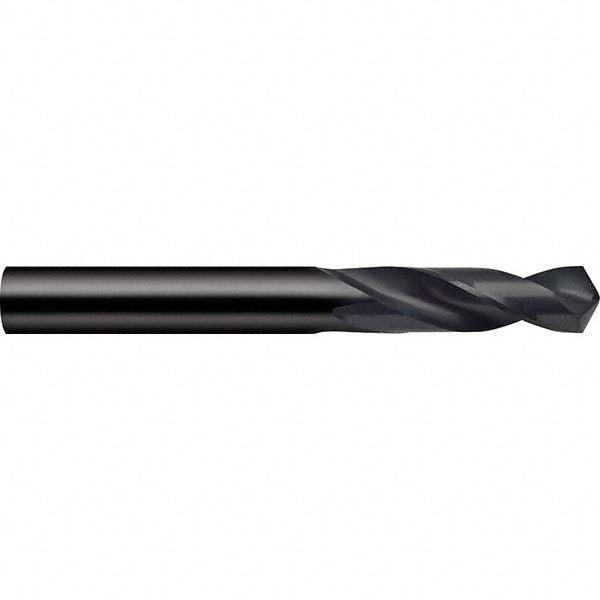

The Guhring 9002230021800 is a #44 HSS Stub drill bit, 118° point. Suited for steel, cast iron. Series 223.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.014 mm
Drill bit size0.0860
Drill bit size range0.0000 to 0.1000
Drill bit size wire#44
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)13.00
Flute typeRegular Spiral
Maximum drilling depth0.3830
Number of flutes2
Overall length1.5748
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Shank diameter0.0858
Shank length1.0630
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialHSS
Web configurationParallel
Web thinningWeb-Thinned
