Guhring
Letter L High-Speed Steel Stub Drill Bit, Oxide, 118° point - Guhring 9002230073700
MFR# 9002230073700Series 223
$6.15List $7.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingOxide
Description

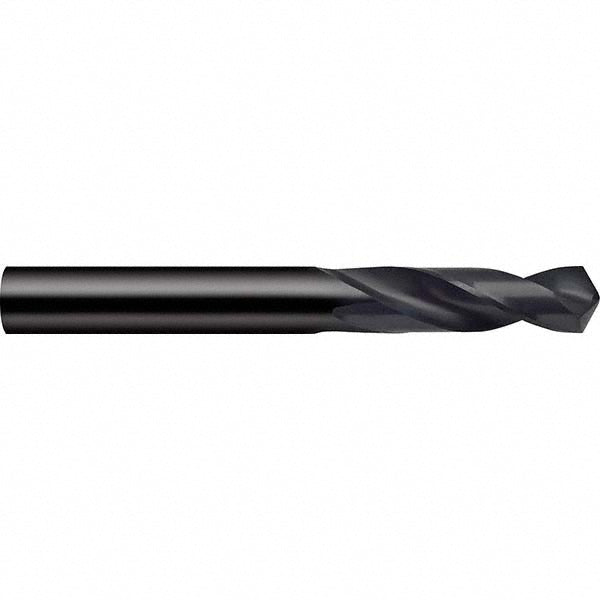

The Guhring 9002230073700 is a Letter L High-Speed Steel Stub drill bit with a Oxide finish, 118° point. Series 223.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit size0.2902
Drill bit size letterL
Drill bit size range0.2500 to 0.3000
Drill length typeStub
Drill point angle118
Flute by diameter ratio3xD
Flute length (mm)34.00
Flute typeSpiral
Material gradeM2
Overall length2.9134
Point typeStandard
Shank diameter0.2902
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
Tool materialHigh-Speed Steel
Web configurationTapered
