Guhring

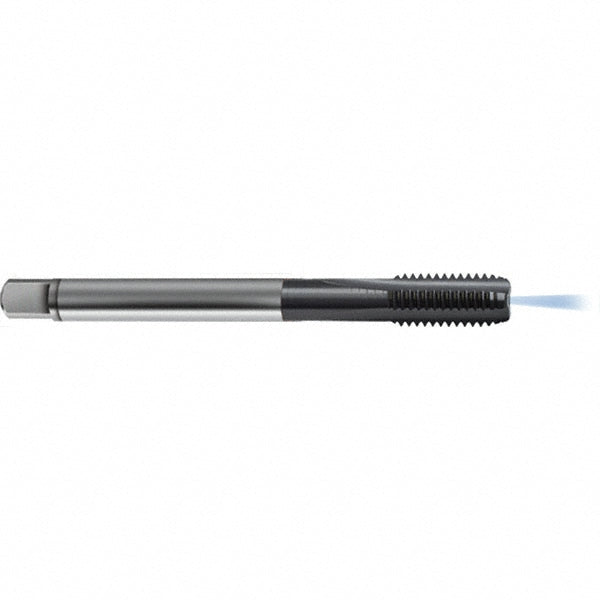

M10x1.5 Metric High-Speed Steel Standard Tap, TiCN - Guhring 9002970100000
MFR# 9002970100000Series 297
$55.65List $71.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiCN
Description
The Guhring 9002970100000 is a Metric High-Speed Steel Standard tap with a TiCN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishTiCN
Coolant throughYes
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Iron; Copper
Number of flutes3
Overall length3.9370
Shank diameter (mm)7.00
Square size (mm)5.50
Tap typeStandard
Thread directionRight Hand
Thread limitD10; D11
Thread pitch (mm)1.50
Thread size (mm)M10x1.5
Thread standardMetric
