Guhring
#48 Cobalt Drill Bit, 118° point - Guhring 9003050019300
MFR# 9003050019300Series 305
$6.92List $8.87
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

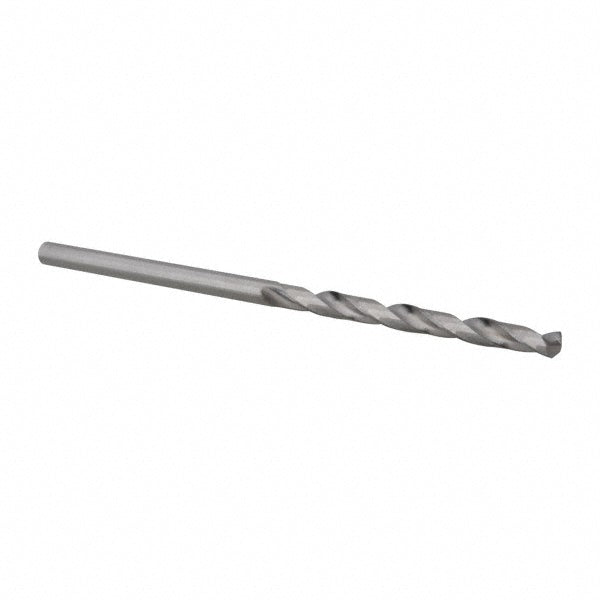

The Guhring 9003050019300 is a #48 Cobalt drill bit, 118° point. Suited for cast iron, steel. Series 305.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.014 to 0.000 mm
Drill bit materialCobalt
Drill bit size0.0760
Drill bit size range0.0500 - 0.1000
Drill bit size wire#48
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)24.00
Flute typeSpiral
Maximum drilling depth0.8310
Number of flutes2
Overall length (mm)49.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.0760
Shank length (mm)25.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
