Guhring

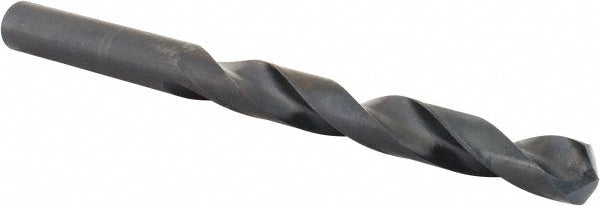

15/32" Cobalt Drill Bit, Oxide, 118° point - Guhring 9003050119100
MFR# 9003050119100Series 305
$47.63List $61.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
Flutes2
Description
The Guhring 9003050119100 is a 15/32" Cobalt drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. Series 305.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.027 to 0.000 mm
Drill bit finish coatingOxide
Drill bit materialCobalt
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio5xD
Flute length (mm)101.00
Flute typeSpiral
Maximum drilling depth3.2730
Number of flutes2
Overall length (mm)151.00
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in15/32
Shank length (mm)50.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
