Guhring

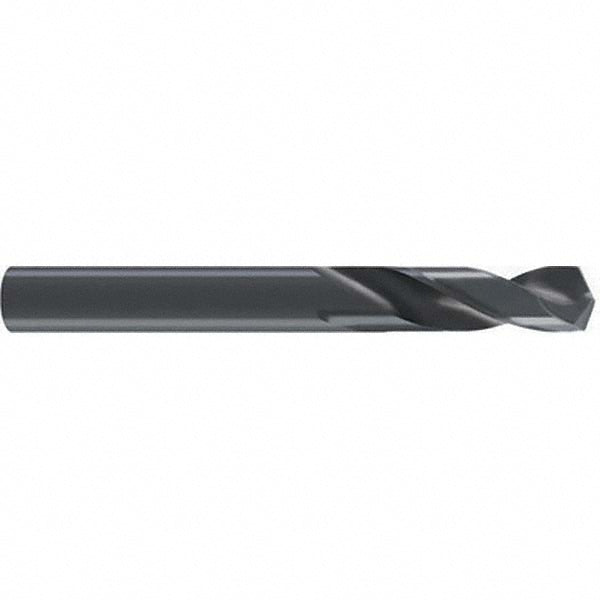

0.2677" Cobalt Stub Drill Bit, 130° point - Guhring 9003290068000
MFR# 9003290068000Series 329
$19.98List $25.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Guhring 9003290068000 is a 0.2677" Cobalt Stub drill bit, 130° point. Suited for titanium alloy. Series 329.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit size0.2677
Drill bit size range0.2500 to 0.3000
Drill length typeStub
Drill point angle130
Drill tip finish coatingOxide
Flute by diameter ratio3xD
Flute length1.3386
Flute typeSpiral
Material gradeM35
Maximum drilling depth1.3386
Number of flutes2
Overall length2.9134
Point typeStandard
Primary workpiece materialTitanium Alloy
Shank diameter0.2677
Shank length1.5748
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsDIN 1897
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
