Guhring

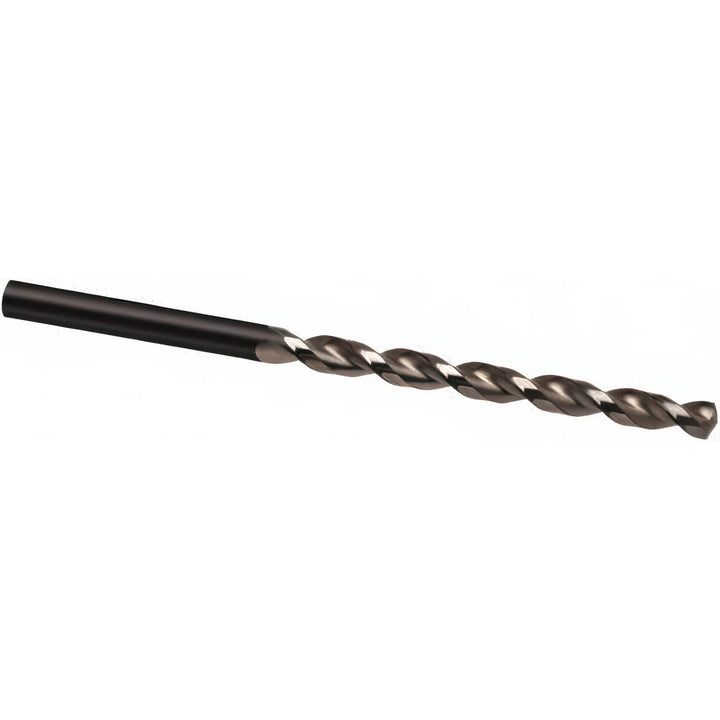

0.2638" Cobalt Drill Bit, 130° point - Guhring 9003360067000
MFR# 9003360067000Series 336
$47.21List $60.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Guhring 9003360067000 is a 0.2638" Cobalt drill bit, 130° point. Series 336.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.2638
Drill point angle degrees130
Flute length (mm)97.00
Flute length x diameter ratio10xD
Flute typeParabolic
Material gradeM-35
Maximum drilling depth3.4230
Overall length (mm)148.00
Point typeCone Relief
Shank diameter (mm)6.70
Shank length (mm)51.00
Shank typeCylindrical
Spiral typeRegular
StandardsDIN 340
Threaded shankNo
Tool materialCobalt
Web thinningWeb-Thinned
