Guhring
Letter Q High Speed Steel Drill Bit, 130° point - Guhring 9005010084300
MFR# 9005010084300Series 501
$54.69List $70.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

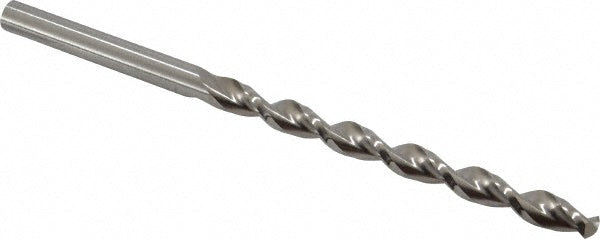

The Guhring 9005010084300 is a Letter Q High Speed Steel drill bit, 130° point. 4-9/32 flute length. Series 501.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size0.3320
Drill bit size letterQ
Drill point angle degrees130
Flute length in4-9/32
Flute length x diameter ratio10xD
Flute typeParabolic
Material applicationAluminum Alloy; Steel
Maximum drilling depth3.7940
Overall length6-1/2
Point typeStandard
Shank diameter0.3319
Shank length (mm)56.00
Shank typeCylindrical
Specification numberDIN 340
Spiral typeRegular
StandardsDIN 340
Threaded shankNo
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
