Guhring
0.3906" High-Speed Steel Drill Bit, 130° point - Guhring 9005020099200
MFR# 9005020099200Series 502
$170.11List $218.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

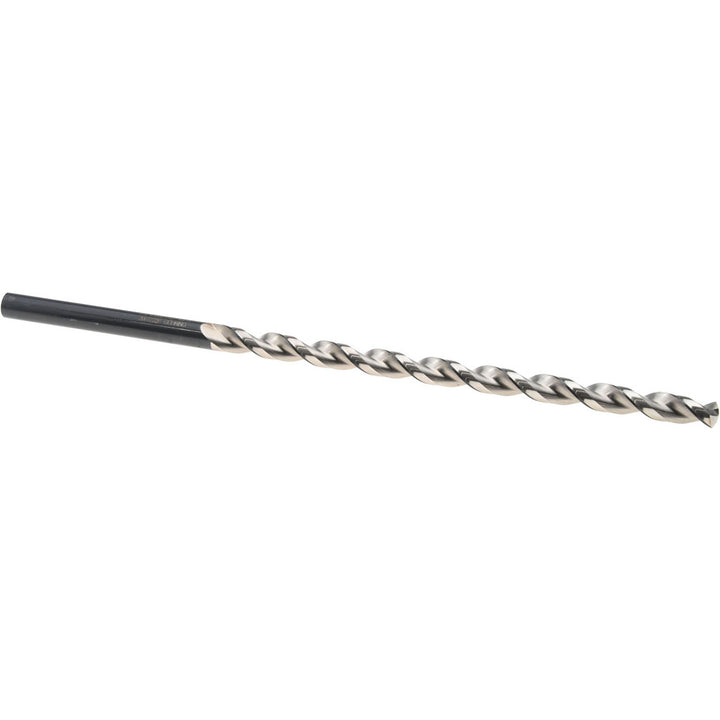

The Guhring 9005020099200 is a 0.3906" High-Speed Steel drill bit, 130° point. 7-9/32 flute length. Series 502.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit gradeHigh Performance
Drill bit size0.3906
Drill point angle130
Flute length in7-9/32
Flute typeParabolic
Number of flutes2
Overall length10.4330
Point typeStandard
Shank diameter in25/64
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1869
Tool materialHigh-Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
