Guhring
3/16" High Speed Steel Drill Bit, 130° point - Guhring 9005040047600
MFR# 9005040047600Series 504
$67.02List $85.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
Description

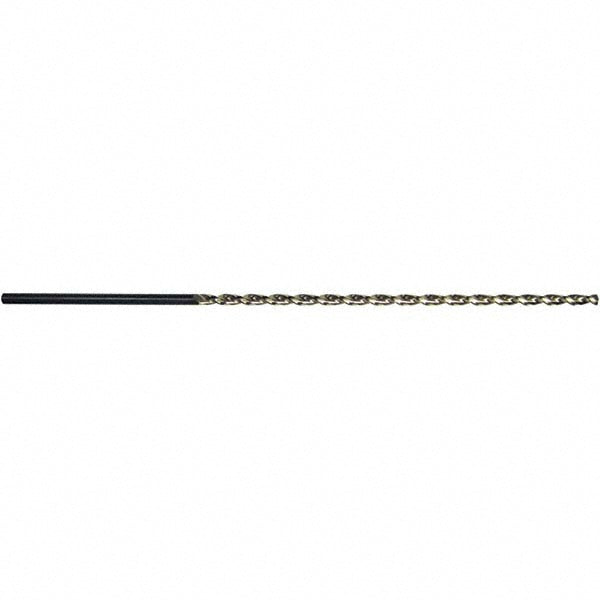

The Guhring 9005040047600 is a 3/16" High Speed Steel drill bit, 130° point. Suited for aluminum. Series 504.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit gradeHigh Performance
Drill bit size in3/16
Drill point angle130
Flute by diameter ratio30xD
Flute length8.2677
Flute typeParabolic
Material gradeM2
Maximum drilling depth8.2677
Number of flutes2
Overall length (mm)315.00
Point typeChisel Point
Primary workpiece materialAluminum
Shank diameter in3/16
Shank length4.1339
Shank typeStraight-Cylindrical
StandardsDIN 1869
Tool applicationDeep Hole Drilling
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
