Guhring

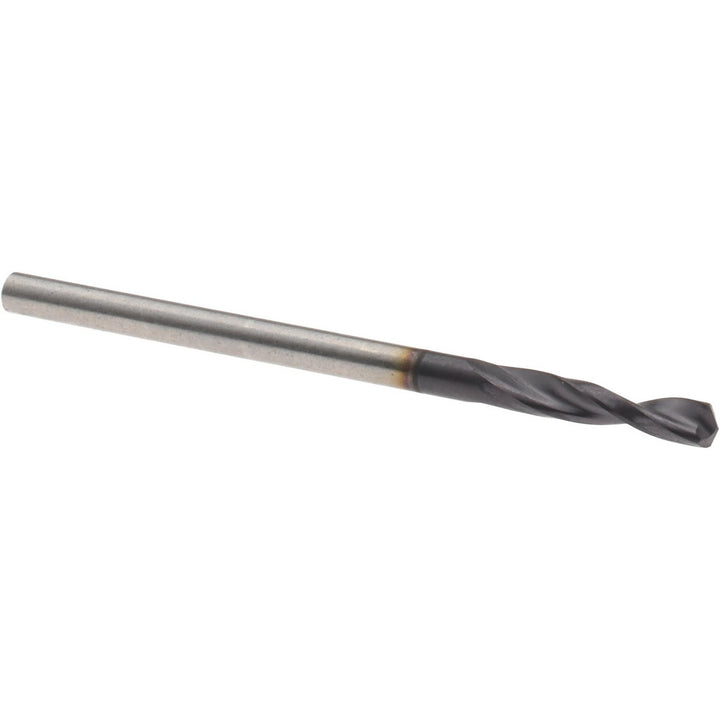

#42 Powdered Metal Stub Drill Bit, Multi-layer, 130° point - Guhring 9005150023700
MFR# 9005150023700Series 515
$12.89List $16.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Guhring 9005150023700 is a #42 Powdered Metal Stub drill bit with a Multi-layer finish, 130° point. Suited for steel, cast iron. Series 515.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.0935
Drill bit size range0.0000 to 0.1000
Drill bit size wire#42
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length0.5512
Flute typeParabolic
Maximum drilling depth0.4110
Number of flutes2
Overall length1.6929
Point typeCone Relief
Primary workpiece materialSteel; Cast Iron
Shank diameter0.0933
Shank length1.1417
Shank typeStraight
Specification designationDIN
Spiral typeFast
StandardsDIN 1897
Tool materialPowdered Metal
Web thinningWeb-Thinned
