Guhring

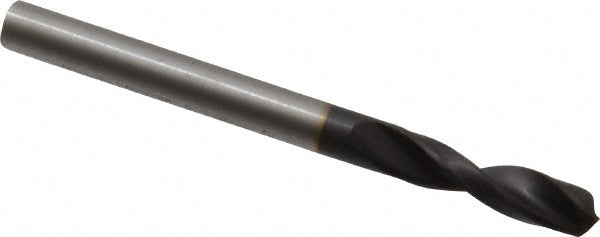

#13 Powdered Metal Stub Drill Bit, Coated, 130° point - Guhring 9005150047000
MFR# 9005150047000Series 515
$16.41List $21.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9005150047000 is a #13 Powdered Metal Stub drill bit with a Coated finish, 130° point. Suited for cast iron, steel. Series 515.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.018 mm
Drill bit size0.1850
Drill bit size range0.1500 to 0.2000
Drill bit size wire#13
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length0.9449
Flute typeParabolic
Material gradePMASP60
Maximum drilling depth0.6670
Number of flutes2
Overall length2.2835
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank length (mm)34.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialPowdered Metal
Web configurationParallel
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
