Guhring

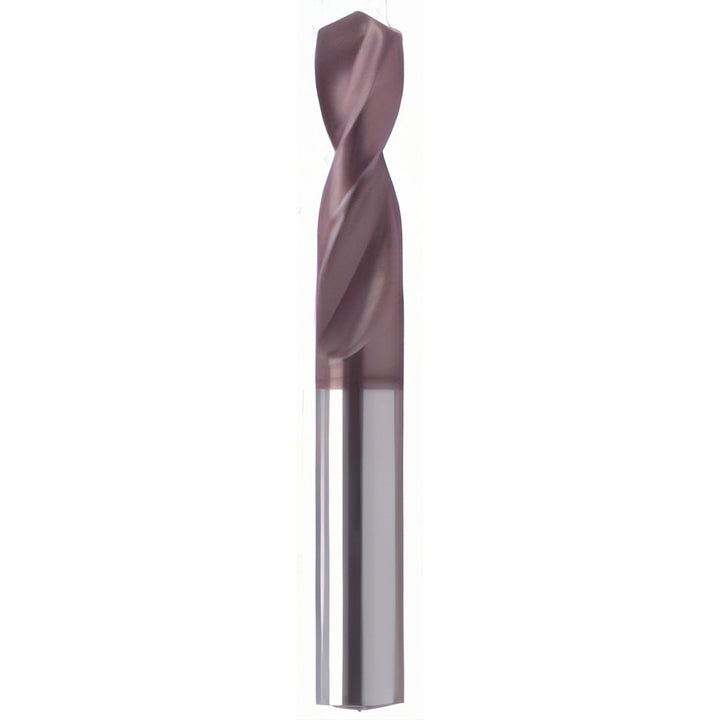

#4 Powdered Metal Stub Drill Bit, Coated, 130° point - Guhring 9005150053100
MFR# 9005150053100Series 515
$18.45List $23.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9005150053100 is a #4 Powdered Metal Stub drill bit with a Coated finish, 130° point. Suited for cast iron, steel. Series 515.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.2090
Drill bit size range0.2000 to 0.2500
Drill bit size wire#4
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length1.1024
Flute typeParabolic
Maximum drilling depth0.7890
Number of flutes2
Overall length2.5984
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeFast
StandardsDIN 1897
Tool materialPowdered Metal
Web thinningWeb-Thinned
