Guhring
0.2677" Powdered Metal Stub Drill Bit, Coated, 130° point - Guhring 9005150068000
MFR# 9005150068000Series 515
$23.05List $29.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description

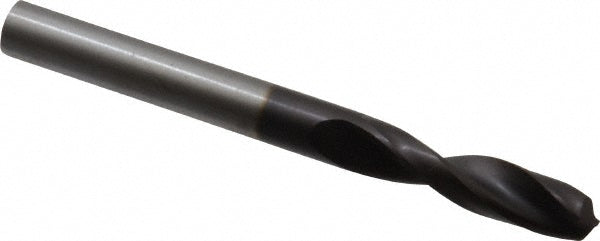

The Guhring 9005150068000 is a 0.2677" Powdered Metal Stub drill bit with a Coated finish, 130° point. Suited for cast iron, steel. Series 515.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit size0.2677
Drill bit size range0.2500 to 0.3000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length1.3386
Flute typeParabolic
Material gradePMASP60
Maximum drilling depth0.9370
Number of flutes2
Overall length2.9134
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank length (mm)40.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialPowdered Metal
Web configurationParallel
Web thinningWeb-Thinned
