Guhring

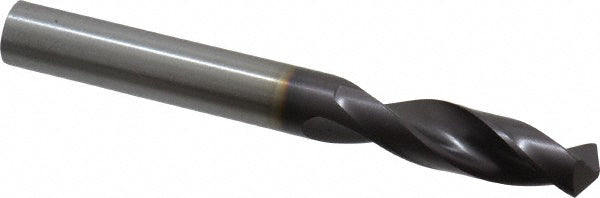

23/64" Powdered Metal Stub Drill Bit, Coated, 130° point - Guhring 9005150091300
MFR# 9005150091300Series 515
$43.75List $56.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size23/64
Flutes2
CoatingCoated
Description
The Guhring 9005150091300 is a 23/64" Powdered Metal Stub drill bit with a Coated finish, 130° point. Suited for cast iron, steel. Series 515.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.022 mm
Drill bit size in23/64
Drill bit size range0.3500 to 0.4000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length1.5750
Flute typeParabolic
Material gradePMASP60
Maximum drilling depth1.0360
Number of flutes2
Overall length3.3070
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN 1897
Tool materialPowdered Metal
Web configurationParallel
Web thinningWeb-Thinned
