Guhring

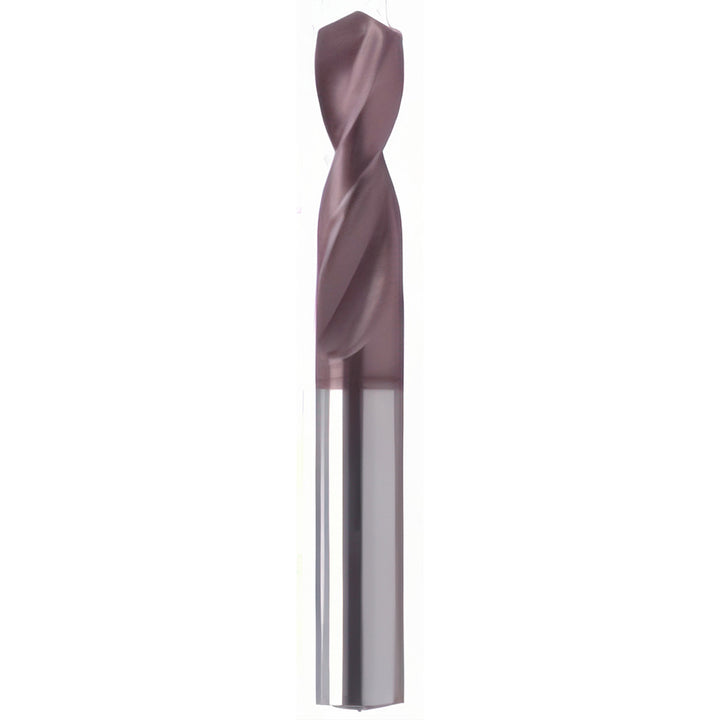

Letter U Powdered Metal Stub Drill Bit, Coated, 130° point - Guhring 9005150093400
MFR# 9005150093400Series 515
$48.97List $62.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Guhring 9005150093400 is a Letter U Powdered Metal Stub drill bit with a Coated finish, 130° point. Suited for cast iron, steel. Series 515.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.3677
Drill bit size letterU
Drill bit size range0.3500 to 0.4000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length1.5748
Flute typeParabolic
Maximum drilling depth1.0230
Number of flutes2
Overall length3.3071
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeFast
StandardsDIN 1897
Tool materialPowdered Metal
Web thinningWeb-Thinned
