Guhring

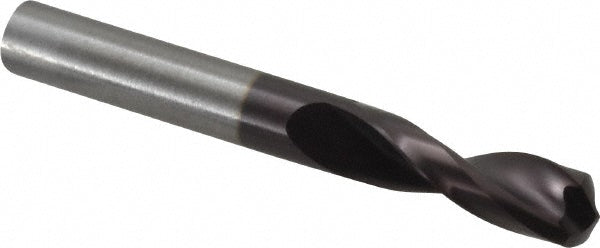

0.4724" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005150120000
MFR# 9005150120000Series 515
$76.59List $98.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingFIREX
Description
The Guhring 9005150120000 is a 0.4724" Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, hardened materials, stainless steel, steel. Series 515.
Specifications
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.000 to -0.027 mm
Drill bit size0.4724
Drill bit size range0.4500 to 0.5000
Drill point angle130
Flute length2.0079
Flute typeParabolic
Material gradePMASP60
Overall length4.0157
Point typeStandard
Primary workpiece materialCast Iron; Hardened Materials; Stainless Steel; Steel
Shank length (mm)51.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Tool materialPowdered Metal
Web configurationParallel
Web thinningWeb-Thinned
