Guhring

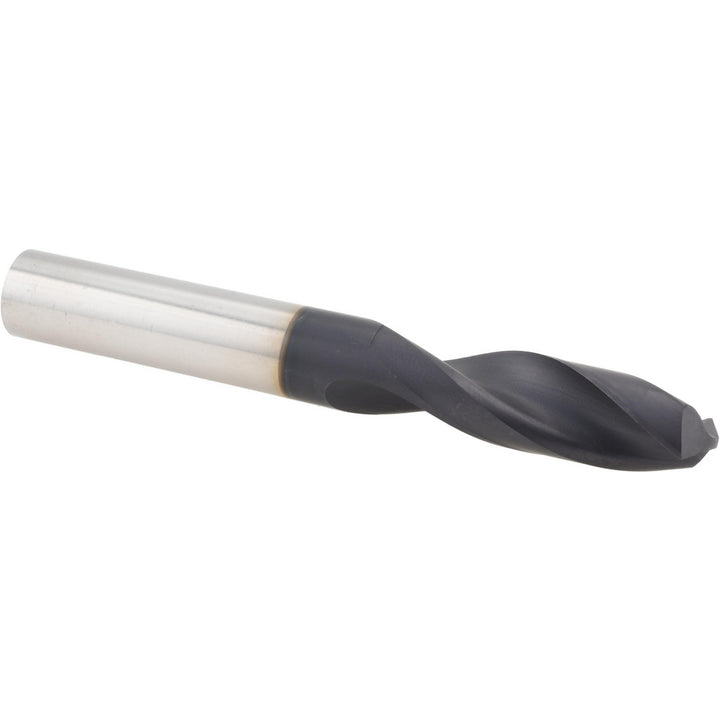

17/32" Powdered Metal Stub Drill Bit, Multi-layer, 130° point - Guhring 9005150134900
MFR# 9005150134900Series 515
$97.85List $125.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/32
Flutes2
CoatingMulti-layer
Description
The Guhring 9005150134900 is a 17/32" Powdered Metal Stub drill bit with a Multi-layer finish, 130° point. Suited for steel, cast iron. Series 515.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size in17/32
Drill bit size range0.5000 to 0.6000
Drill length typeStub
Drill point angle130
Flute by diameter ratio3xD
Flute length2.1260
Flute typeParabolic
Maximum drilling depth1.3300
Number of flutes2
Overall length4.2126
Point typeCone Relief
Primary workpiece materialSteel; Cast Iron
Shank diameter0.5311
Shank length2.0866
Shank typeStraight
Specification designationDIN
Spiral typeFast
StandardsDIN 1897
Tool materialPowdered Metal
Web thinningWeb-Thinned
