Guhring

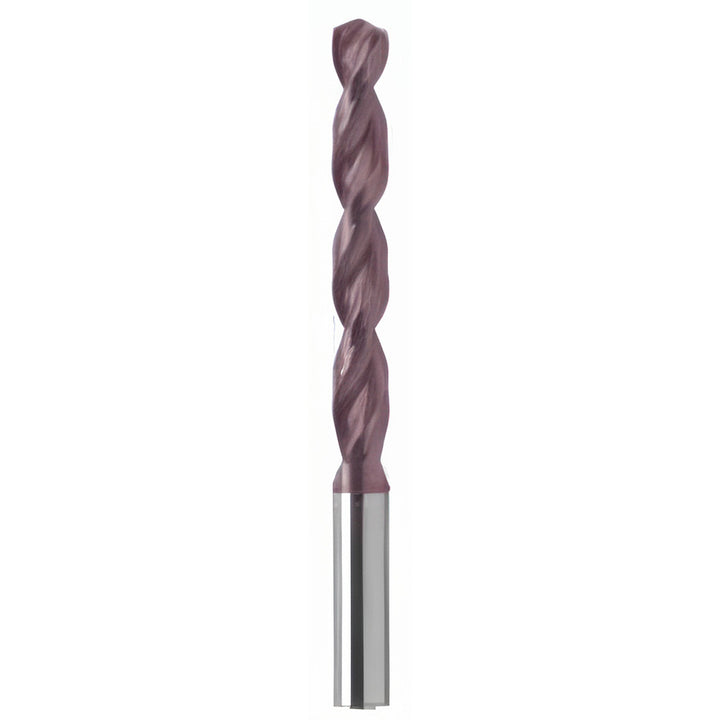

#56 Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300011800
MFR# 9005300011800Series 530
$15.71List $20.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingFIREX
Description
The Guhring 9005300011800 is a #56 Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, steel. Series 530.
Specifications
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit materialPowdered Metal
Drill bit size0.0465
Drill bit size range0.0000 - 0.0500
Drill bit size wire#56
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length0.5500
Flute typeParabolic
Maximum drilling depth0.4810
Number of flutes2
Overall length1.4200
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)1.18
Shank length (mm)22.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeFast
StandardsDIN 338
Tool performanceHigh Performance
Web thinningWeb-Thinned
