Guhring

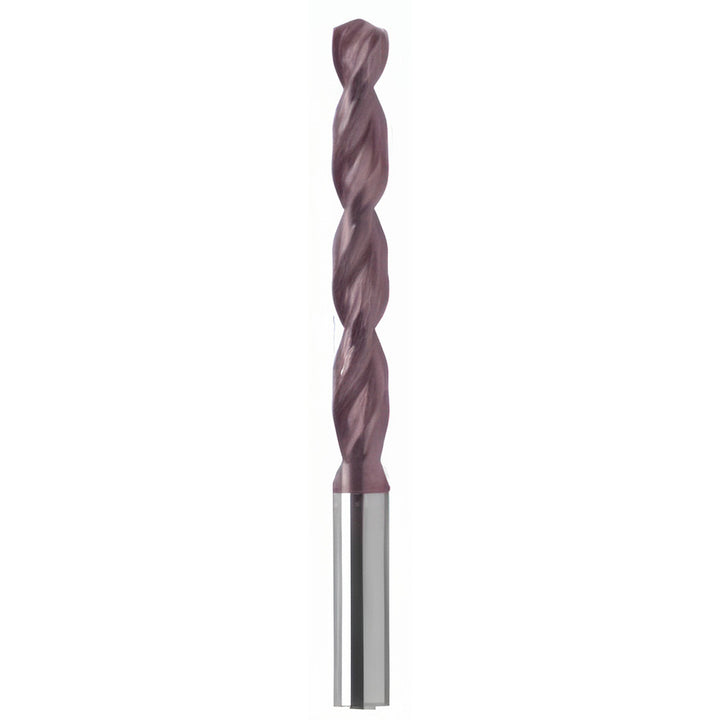

#50 Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300017800
MFR# 9005300017800Series 530
$15.72List $20.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingFIREX
Description
The Guhring 9005300017800 is a #50 Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, steel. Series 530.
Specifications
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit materialPowdered Metal
Drill bit size0.0701
Drill bit size range0.0500 - 0.1000
Drill bit size wire#50
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length0.8700
Flute typeParabolic
Maximum drilling depth0.7610
Number of flutes2
Overall length1.8100
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)1.78
Shank length (mm)24.00
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeFast
StandardsDIN 338
Tool performanceHigh Performance
Web thinningWeb-Thinned
