Guhring

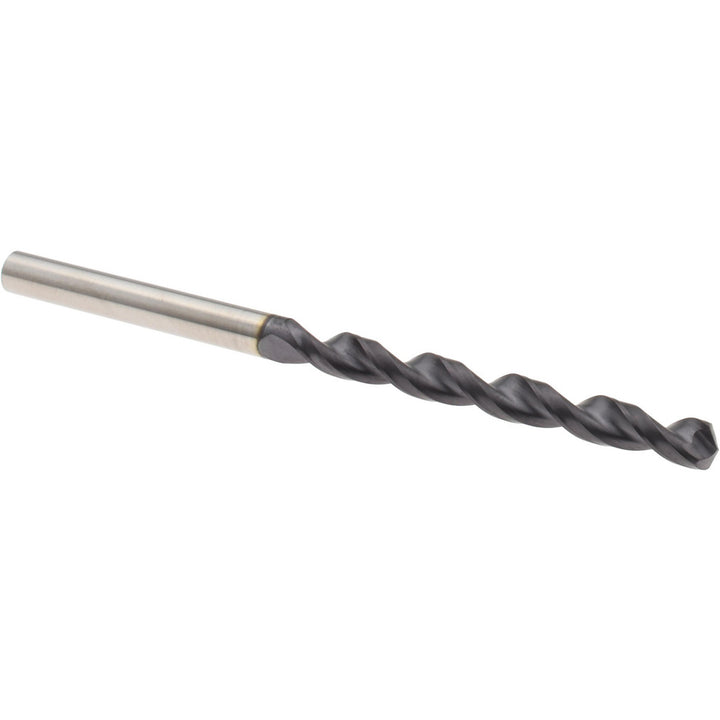

#15 Powdered Metal Drill Bit, Multi-layer, 130° point - Guhring 9005300045700
MFR# 9005300045700Series 530
$18.71List $24.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Guhring 9005300045700 is a #15 Powdered Metal drill bit with a Multi-layer finish, 130° point. Suited for steel, cast iron, stainless steel. Series 530.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHigh Performance
Drill bit materialPowdered Metal
Drill bit size0.1800
Drill bit size range0.1500 - 0.2000
Drill bit size wire#15
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length1.8500
Flute typeParabolic
Maximum drilling depth1.5810
Number of flutes2
Overall length3.1500
Point typeCone Relief
Primary workpiece materialSteel; Cast Iron; Stainless Steel
Shank diameter (mm)4.57
Shank length (mm)33
Shank typeStraight
Specification designationDIN
Spiral typeFast
StandardsDIN 338
Tool performanceHigh Performance
Web thinningWeb-Thinned
