11/32" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300087300

Guhring

11/32" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300087300

MFR# 9005300087300Series 530

$45.61List $58.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/32
Flutes2

Description

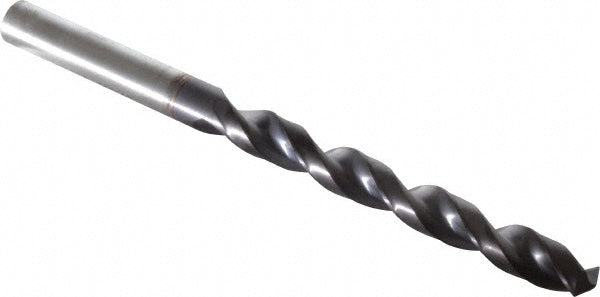

The Guhring 9005300087300 is a 11/32" Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, steel. 3-3/16 flute length, 4-29/32 overall length. Series 530.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.022 to 0.000 mm
Drill bit finish coatingFIREX
Drill bit materialPowdered Metal
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in3-3/16
Flute typeParabolic
Material gradePM-ASP-60
Maximum drilling depth2.6740
Number of flutes2
Overall length in4-29/32
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter in11/32
Shank length (mm)44.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
