Guhring

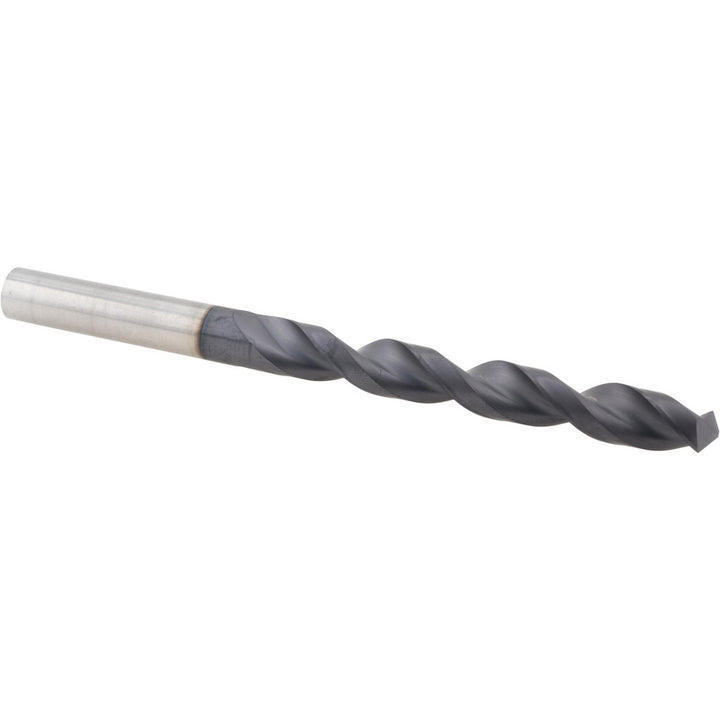

Letter X Powdered Metal Drill Bit, Multi-layer, 130° point - Guhring 9005300100800
MFR# 9005300100800Series 530
$61.83List $79.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Guhring 9005300100800 is a Letter X Powdered Metal drill bit with a Multi-layer finish, 130° point. Suited for steel, cast iron, stainless steel. Series 530.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit gradeHigh Performance
Drill bit materialPowdered Metal
Drill bit size0.3970
Drill bit size letterX
Drill bit size range0.3500 - 0.4000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length3.4300
Flute typeParabolic
Maximum drilling depth2.8300
Number of flutes2
Overall length5.2400
Point typeCone Relief
Primary workpiece materialSteel; Cast Iron; Stainless Steel
Shank diameter (mm)10.08
Shank length (mm)46
Shank typeStraight
Specification designationDIN
Spiral typeFast
StandardsDIN 338
Tool performanceHigh Performance
Web thinningWeb-Thinned
