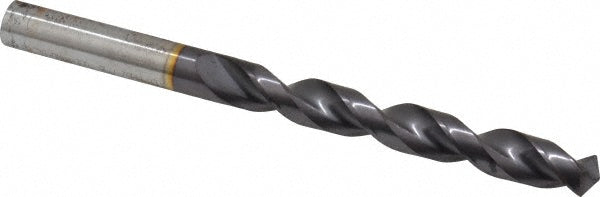

7/16" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300111100

Guhring

7/16" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300111100

MFR# 9005300111100Series 530

$86.61List $111.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
Flutes2

Description

The Guhring 9005300111100 is a 7/16" Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, steel. 3-11/16 flute length, 5-19/32 overall length. Series 530.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.027 to 0.000 mm
Drill bit finish coatingFIREX
Drill bit materialPowdered Metal
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in3-11/16
Flute typeParabolic
Material gradePM-ASP-60
Maximum drilling depth3.0450
Number of flutes2
Overall length in5-19/32
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter in7/16
Shank length (mm)48.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
