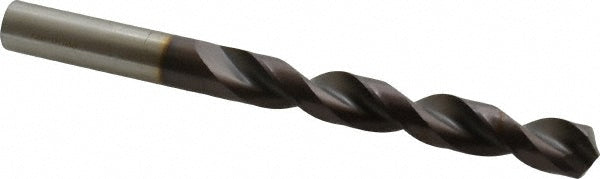

0.5118" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300130000

Guhring

0.5118" Powdered Metal Drill Bit, FIREX, 130° point - Guhring 9005300130000

MFR# 9005300130000Series 530

$100.75List $129.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Guhring 9005300130000 is a 0.5118" Powdered Metal drill bit with a FIREX finish, 130° point. Suited for cast iron, steel. 3-31/32 flute length, 5-15/16 overall length. Series 530.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.027 to 0.000 mm
Drill bit finish coatingFIREX
Drill bit materialPowdered Metal
Drill bit size0.5118
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute by diameter ratio5xD
Flute length in3-31/32
Flute typeParabolic
Material gradePM-ASP-60
Maximum drilling depth3.2090
Number of flutes2
Overall length in5-15/16
Point typeCone Relief
Primary workpiece materialCast Iron; Steel
Shank diameter0.5118
Shank length (mm)50.00
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsDIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
